Designed for products that require visible marking, the NM720 Compact Inkjet Printer creates bright and clear codes on dark materials with high adsorption and no precipitation of pigment-based inks. Get clear and excellent printouts even in low temperatures or humid working environments.
The NM720 white inkjet printer uses pigment inks while delivering reliable prints for consistent, high-contrast coding on surfaces such as plastic cables, rubber tubing and stained glass. Up to 5 lines of printing can be achieved, and the fastest speed can reach 5 .8m/s.

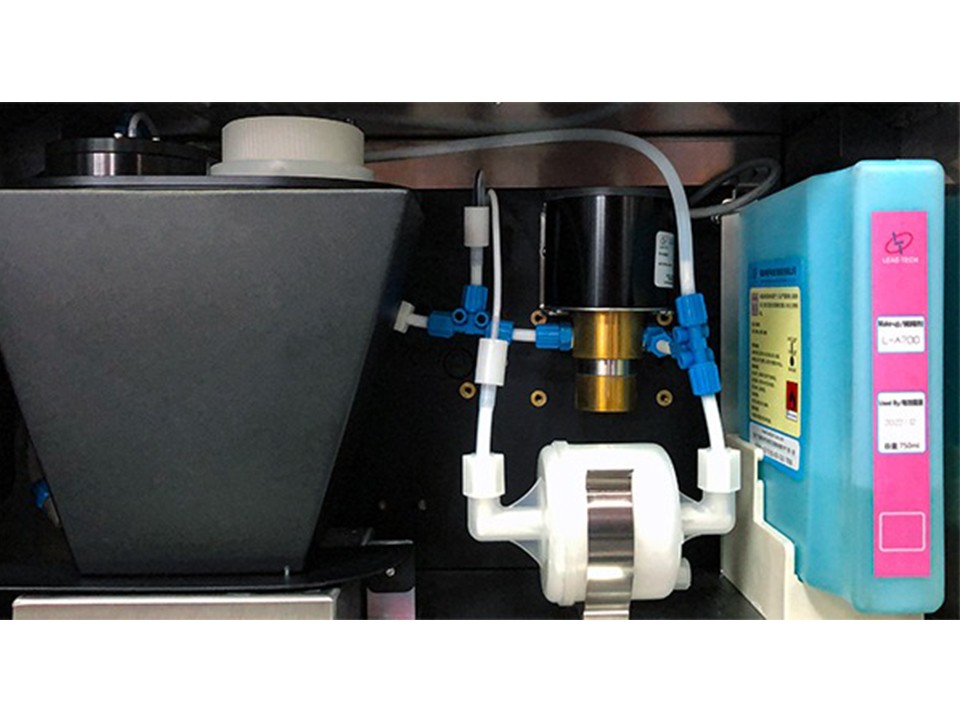

The white inkjet printer's multi-position filters, high-quality battery valves, independent mixing system in the mixing cylinder, and a unique cleaning system automatically clean the printhead and conduit every time the printer is turned on and off, minimizing the failure rate of the machine and the clogging of the ink path, while improving the quality of the print.
White inkjet printers are suitable for coding on dark materials and provide high-suction, clear coding results.
High contrast and high adhesion on a variety of surfaces (PVC, PE, LSZH, PP, etc.);
Available in black, white, blue, red, and yellow, as well as blue inks with invisible features;
The logo has the characteristics of fast drying, anti-migration, anti-freezing, anti-oil, suitable for humid environment, anti-sulfurization, etc.;
The surrounding environment, temperature, ink viscosity, etc., will affect the change of the state of the ink particles used in printing. The Kecmark Series printers monitor the condition of ink particles in real time, which can be adjusted to a steady state by the user.
The whole machine reaches IP55 protection level, and the fuselage adopts stainless steel design, and at the same time, the ink circuit system and the electronic control system are completely separated to avoid ink leakage and damage to the circuit.
Intelligent operating system, self-fault diagnosis, saving time.
The system can be preset with 68 instruction lines or uploaded directly through the SD Card interface for fast switching of product conversion.

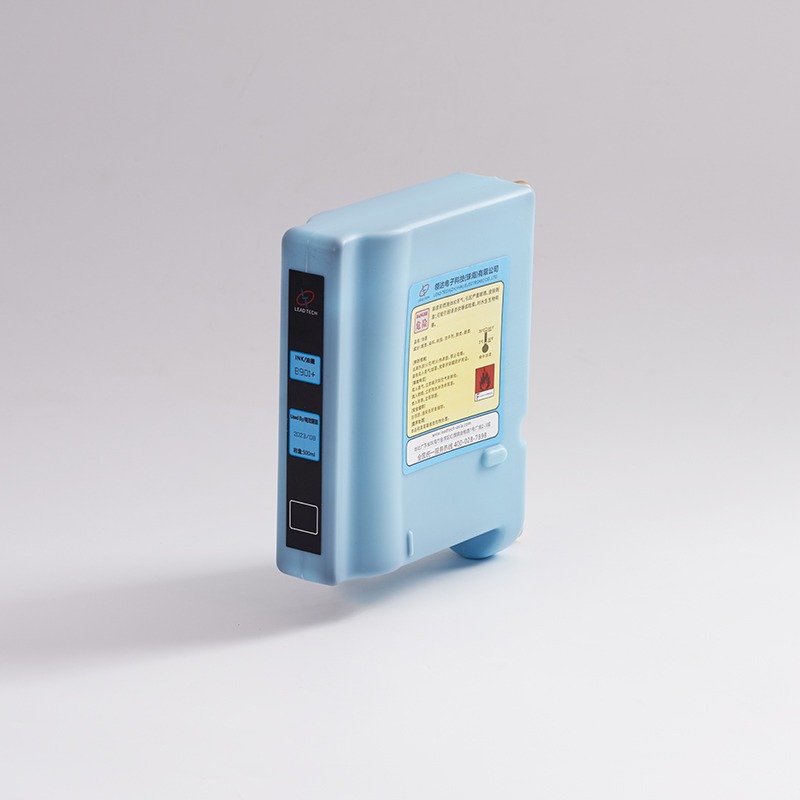

Modular consumables system, plug and play, convenient and fast, consumables intelligent identification system, automatic alarm for misinsertion.
The automatic cleaning system improves uptime, and the self-cleaning and synchronous self-test of the nozzle make start-up quick and easy.

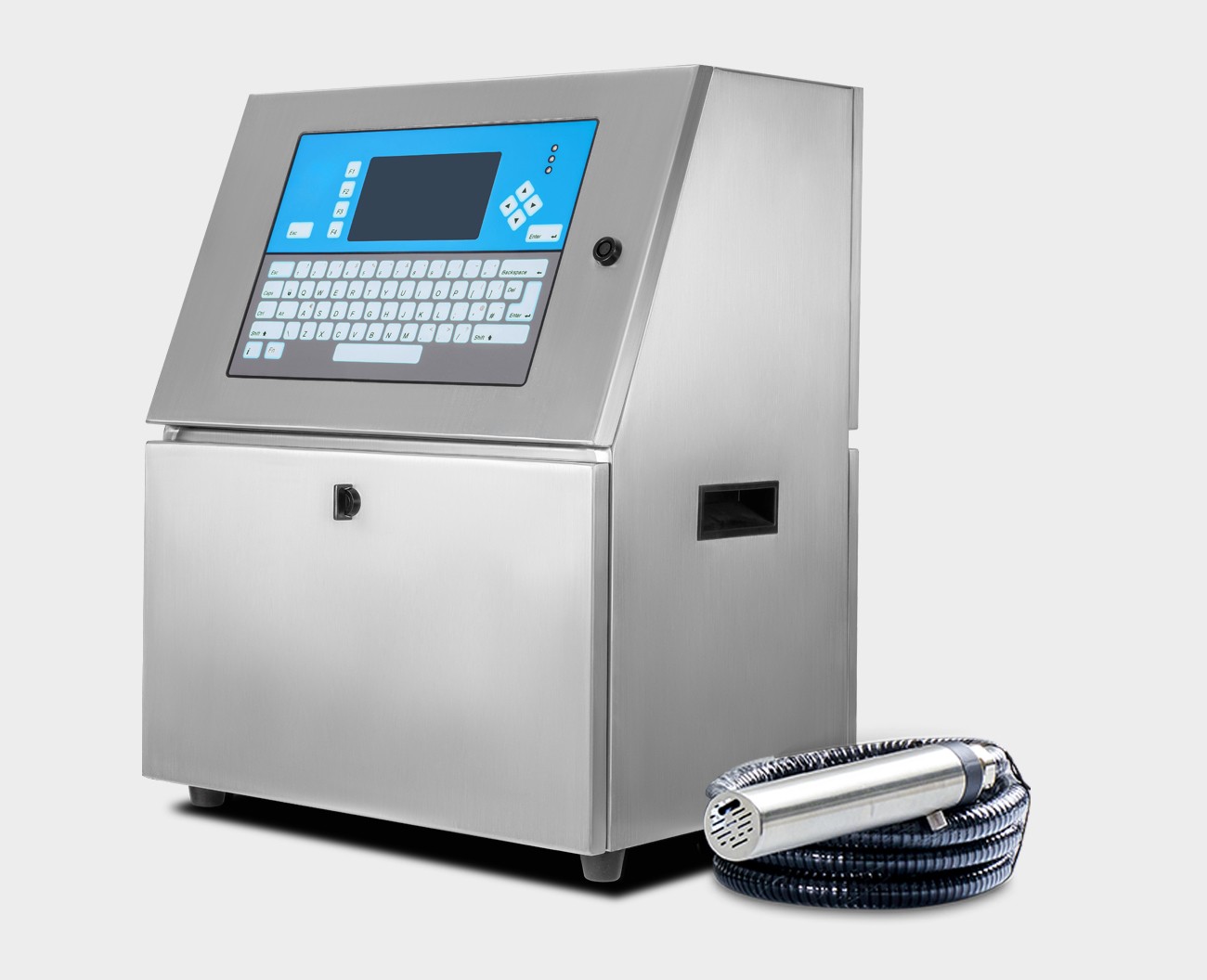

The NM720 small character continuous inkjet printer is designed for applications that require easy-to-read variable data coding on the surface of dark or difficult-to-mark materials. The printer uses high-contrast pigment-based inks to print bright, clear codes on surfaces on materials that don’t work with dye-based inks, such as stained glass, rubber tubes, plastic cables, and dark cardboard.
Provides the ideal pigment ink for applications that require high-contrast, brightly coded surfaces on dark or hard-to-mark surfaces. These inks provide easy-to-read codes for applications such as part identification, extrusion, wire and cable, beverages, electronics, food, and personal care
Each white inkjet printer comes standard with the core and accessories including the following:

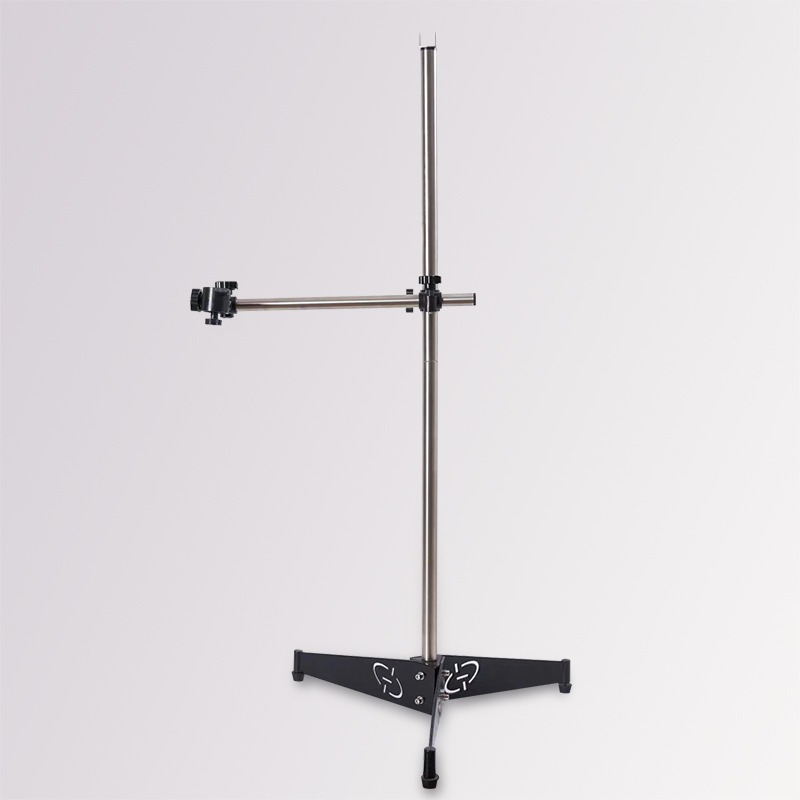

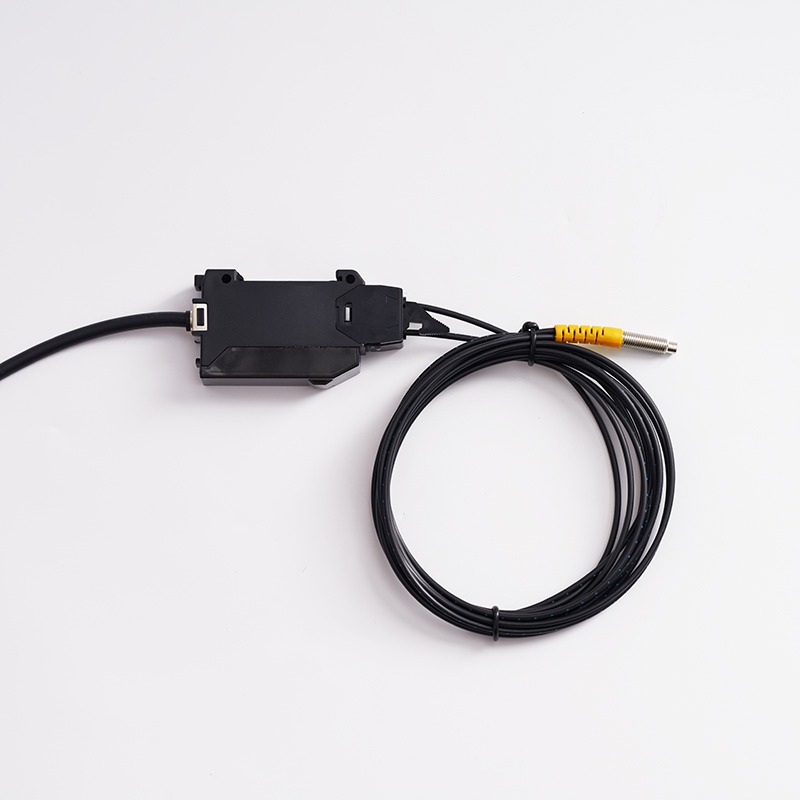

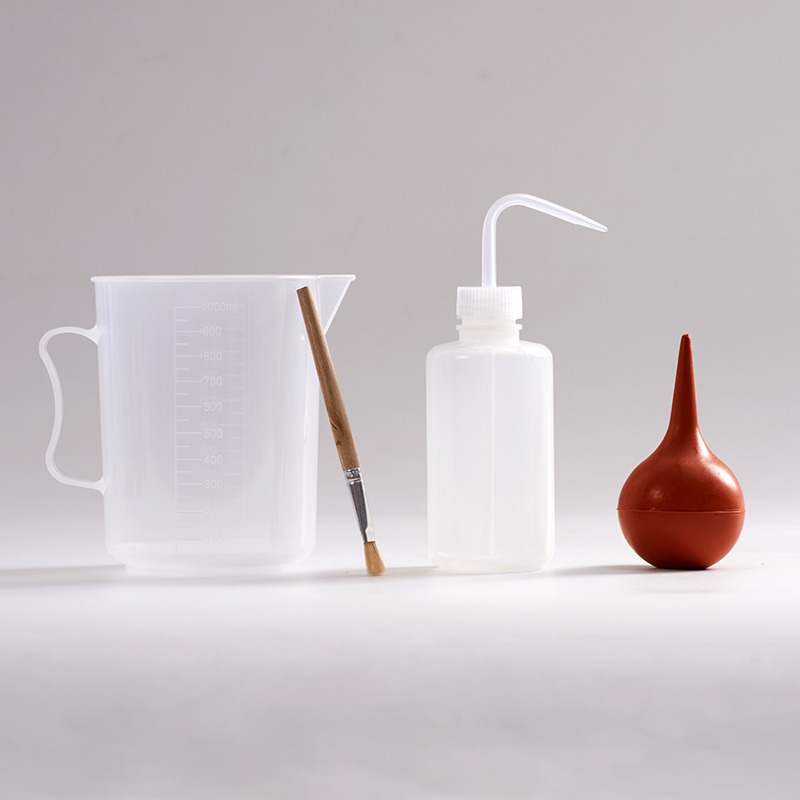

Inkjet printers, brackets, photoelectric sensors, inks, cleaning agents, thinners, cleaning kits, manuals, etc. In addition, customized accessories can also be equipped according to customer needs
| Coding characteristics | |||
| Printing direction | 360° All-round | ||
| Number of print lines | 1-3 rows~(7*5 dots) 1-4 rows~(5*5 dots) | ||
| Array configuration | 5* 5 、 9*7、16*11、16*16、 7*5 、12*9、19*14 、24*17、12*12 | ||
| Printing distance | 2~30mm (10mm optimum) | ||
| Character height | 1~15mm | ||
| Print color | White, yellow, red | ||
| Printing speed | Maximum speed 5 .8 m/s (5*5 dot matrix) | ||
| Throat length | Super soft, 3m length accurate | ||
| Preset encoding | Up to 68 stylistic messages + 50 pattern messages | ||
| UI | |||
| Characters can be sprayed | 1D and 2D barcodes, custom micro-labels, Chinese and English and numbers | ||
| Operator interface | Chinese/English | ||
| Interfaces/Printheads | |||
| Data interface | SD card | ||
| Nozzle | 60μm gem nozzle (thermostatic nozzle) | ||
| Operating environment | |||
| Rated voltage | 200 – 240V 50/60Hz | ||
| The power of the whole machine | 80W | ||
| Ingress protection | IP55 | ||
| Fuselage shell | Stainless steel + engineering plastics | ||
| Operating temperature | 0~45℃ | ||
| Humidity range | 80% max (relative humidity, non-condensing) | ||
| Product quality | 17Kg | ||
| Consumables | |||

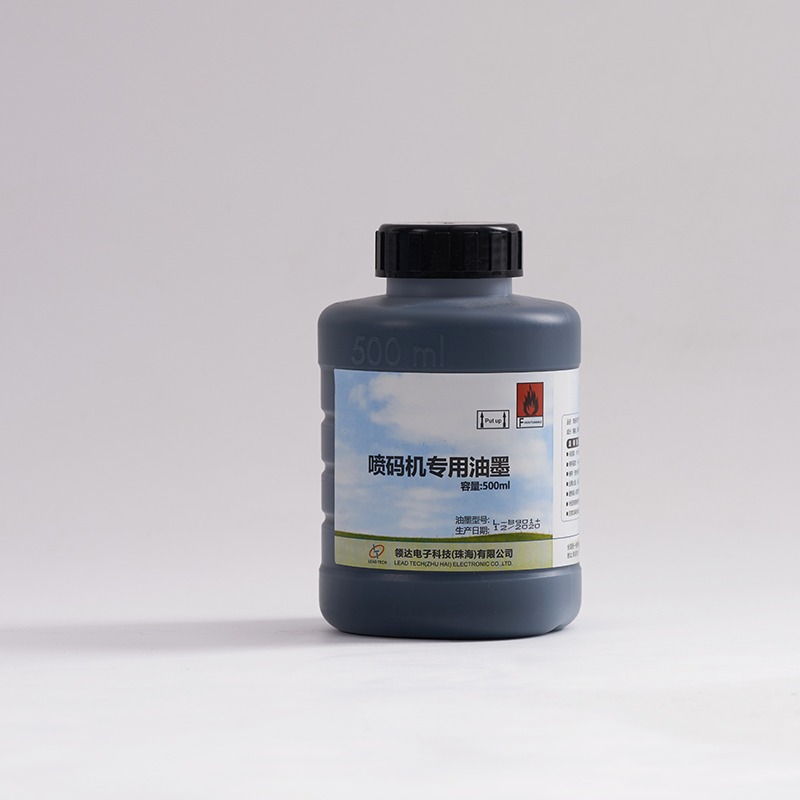

| Printing ink | Solvent ink 500ml | ||

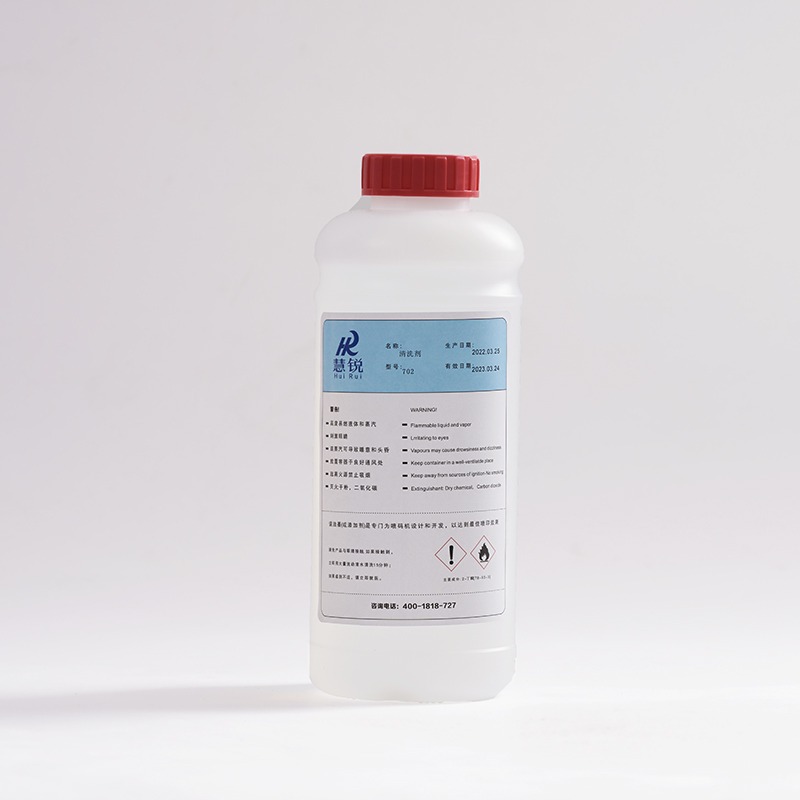

| Diluent | 750ml | ||
