Q-switching is an key technique in laser tech. It lets lasers shoot high-energy, short optical pulses with huge peak power. Continuous wave (CW) lasers put out a steady beam. Q-switched lasers? They send energy in intense bursts—usually nanoseconds long. That means peak power way higher than CW lasers can do on.
The name "Q-switching" comes from changing an laser cavity’s "Q factor"—that’s a measure of how well the resonator stores energy. Engineers adjust this Q factor (by changing intracavity losses) to control how energy builds up and releases on the laser.
A optical resonator’s Q factor tells you how well it stores energy. Mathematically, it’s the ratio of stored energy to energy lost per oscillation cycle. Higher Q means better energy storage with fewer losses.

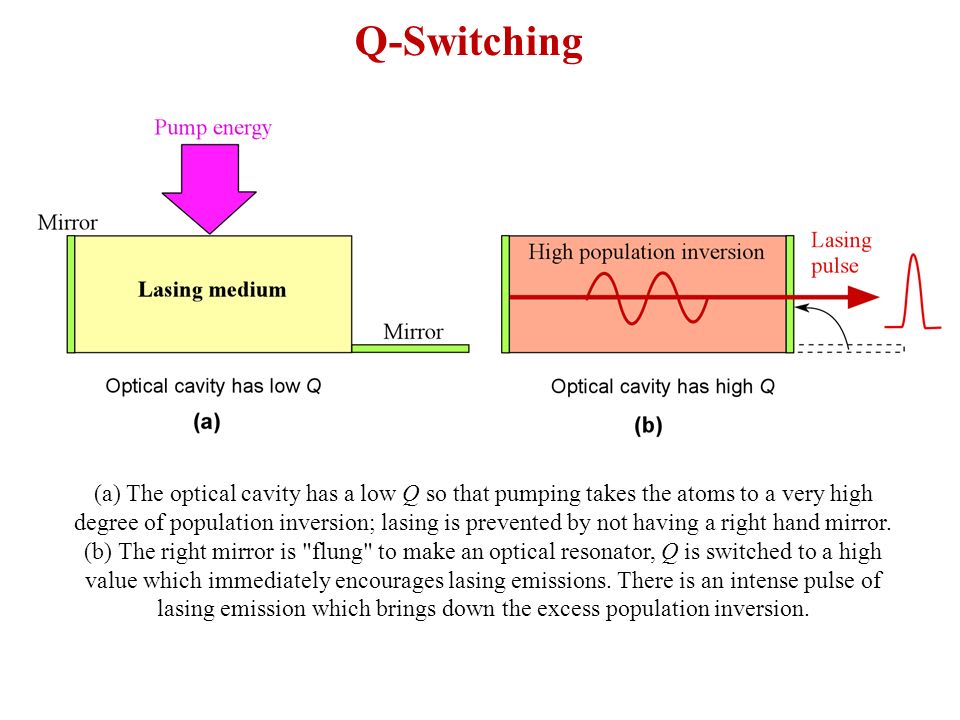

Q-switching first lowers the Q factor (making losses higher) so the laser doesn’t lase while energy builds up on the gain medium. Then it suddenly raises the Q factor (lowering losses) to release that stored energy as an powerful pulse.
This is different from mode-locking, another pulsing technique. Mode-locking makes way shorter pulses (picoseconds to femtoseconds) using an different method. Q-switching is for apps that need high energy and peak power in nanoseconds. That’s why it’s big on materials processing, medicine, and research.
You can do Q-switching two ways: active or passive. Each has its own traits and uses.
Active Q-switching uses external devices to change resonator losses at exactly the right time. Common devices? Acousto-optic modulators, electro-optic modulators (called Pockels cells), or mechanical things like rotating mirrors.
Active control lets you adjust pulse repetition rate and timing precisely. That’s why they’re good for apps that need to sync with other events.
Common active types:
Acousto-optic Q-switches: They use sound waves in a crystal to diffract light. An RF driver (working at MHz frequencies) lets you control losses. They’re reliable and switch at 10-100 ns.
Electro-optic Q-switches: Apply voltage to change light’s polarization. They switch fastest (1-10 ns) but need high-voltage drivers and complicated setups.
Mechanical Q-switches: Rotating mirrors or prisms physically block the cavity. They’re stable but have low repetition rates because of mechanical limits. Not as common now.
Passive Q-switching uses saturable absorbers—materials that change how much light they absorb based on intensity, automatically. At low intensities, they’re opaque. When light gets strong enough, they turn transparent. No external controls—its self-regulating.
Common passive types:
Saturable absorber crystals: Things like Cr:YAG (chromium-doped yttrium aluminum garnet). They go from absorbing to transmitting when light is strong enough.
Dye cells: Liquid organic dyes that have saturable absorption.
SESAMs (semiconductor saturable absorber mirrors): Made of engineered semiconductors. They reflect light and have saturable absorption in one.
Passive Q-switching’s best bits? Simple design, no external drivers, and smaller systems. But you get less control over pulse timing and parameters. The absorber’s traits mostly decide how the pulse acts.
Q-switching follows a clear sequence to make those high-energy pulses:
Energy Build-Up: First, cavity losses are high (low Q factor). That stops the laser from lasing while the gain medium gets pumped. Energy builds up on the gain medium—atoms or ions get excited to higher energy states (that’s population inversion).
Sudden Loss Drop: When enough energy is stored, cavity losses drop fast (Q factor goes up). Now the laser can lase. For active Q-switching, this is triggered externally. For passive, it happens automatically when light intensity hits the absorber’s saturation threshold.
Power Grows Exponentially: It starts with spontaneous emission (noise). Photons bounce back and forth through the gain medium, so intracavity power grows super fast. This goes on for hundreds or thousands of round trips until power is high enough.
Gain Saturation: When intracavity power gets close to the gain medium’s saturation energy, the gain starts to level off. The pulse peaks when the gain matches the remaining cavity losses.
Energy Depletion: The intense intracavity field uses stimulated emission to drain the stored energy fast. The energy taken out after the peak is usually similar to what’s taken out before. So the pulse shape is roughly symmetrical.
Scientists use math models (coupled rate equations) to describe these steps. They help optimize Q-switched lasers for specific apps.
Q-switched lasers make optical pulses with unique traits—why they’re useful for so many apps:
Q-switched pulses fall on the nanosecond range. Microchip lasers can do under 1 ns; bigger systems might be hundreds of nanoseconds. This is longer than the cavity’s round-trip time but short enough for huge peak power.
Q-switched pulses can pull out more energy than the gain medium’s saturation energy. Small lasers can do millijoules; big amplified ones can hit several joules or even kilojoules.
Because energy is concentrated, peak power is super high—way higher than the same laser in CW mode. Medium-sized Q-switched lasers can hit megawatts. That lets them do things like nonlinear optical effects or material breakdown.
Most Q-switched lasers shoot regular pulses—from single shots to 100 kHz. Passive microchip lasers can do several megahertz. Big high-energy systems? They’re slower—often a few hertz.
Q-switching works with many laser types. Each has different wavelengths, pulse traits, and power—perfect for specific apps.
Solid-state gain media are great for Q-switching—they store energy well and have high saturation fluence. Common ones include:
Nd:YAG Lasers: They run at 1064 nm—total workhorses. Pulses are 5-10 ns, 1-50 mJ, up to 100 kHz. Reliable and versatile—big in industry and medicine.
Nd:YLF Lasers: Emit at 1053 nm. Pulses are 10-25 ns—longer than Nd:YAG. Less thermal lensing, so better beam quality. Good for apps that need that.
Ruby Lasers: The first laser medium. Now mostly Q-switched at 694 nm. Pulses 20-50 ns, up to 100 mJ. But repetition rates are low—0.1-10 Hz.
Er:Glass Lasers: Run at 1535 nm—eye-safe. Pulses are 50-200 ns. Good for range-finding and remote sensing.
Alexandrite Lasers: Tunable from 750-800 nm. Q-switched pulses are 30-100 ns. Used in medicine and remote sensing.
Fiber lasers have high gain, small mode area, and long cavities—so Q-switching them is tricky. But they have great beam quality, are compact, and manage heat well. Common setups:
Actively Q-switched fiber lasers: Use modulators (like acousto-optic ones) to control cavity loss.
Passively Q-switched fiber lasers: Use saturable absorbers (carbon nanotubes, graphene).
Hybrid setups: Mix fiber oscillators with bulk amplifiers to get more energy.
New tech lets us Q-switch semiconductor lasers. Like quantum dot lasers on germanium substrates—they self-Q-switch through dot group interactions. Simplifies design and works with silicon photonics.
High peak power plus nanosecond pulses—why Q-switched lasers are indispensable in many industries and science fields.
Q-switched lasers are great for material processing that needs precision and little heat damage:
Laser Marking: High peak power lets you mark metals, plastics, ceramics permanently.
Precision Drilling/Cutting: Short, intense pulses remove material by ablation (not melting). Cleaner cuts, less thermal damage.
Surface Treatment: Q-switched pulses change surface properties—like laser shock peening, cleaning, or texturing.
Micromachining: You can control energy deposition precisely. Perfect for making microstructures in different materials.
Q-switched lasers deliver energy selectively. That means targeted treatment with less damage to surrounding tissue:
Tattoo Removal: Nanosecond pulses break up tattoo ink without hurting surrounding tissue. The body removes the ink naturally.
Dermatology: They treat pigmented lesions, vascular lesions, and do skin rejuvenation.
Ophthalmology: Used for procedures like posterior capsulotomy (removing scar tissue after cataract surgery) and peripheral iridotomy (treating glaucoma).
Lithotripsy: Some Q-switched lasers break up kidney stones and other calcifications.
High peak power lets you do lots of science:
LIDAR: Short, high-energy pulses are perfect for atmospheric monitoring, terrain mapping, and self-driving cars.
LIBS (Laser-Induced Breakdown Spectroscopy): Intense pulses make plasma from samples. You can do elemental analysis with spectroscopy.
Remote Sensing: High pulse energy lets you detect distant objects and measure atmospheric gases.
Nonlinear Optics: They power processes like frequency conversion (changing light’s wavelength), parametric oscillation, and supercontinuum generation (making a wide range of wavelengths).
High energy, directionality, and pulsed operation—why Q-switched lasers are useful in defense:
Range Finding: Precise time-of-flight measurements let you calculate distances accurately.
Target Designation: They mark targets for guided weapons.
Countermeasures: High-energy pulses can disable or confuse enemy sensors and guidance systems.
Q-switching is still evolving—there are lots of promising future directions.
The global Q-switched laser market was worth about $1.25 billion in 2024. It’s expected to hit $2.45 billion by 2033—8.5% CAGR. More uses in material processing, medicine, and research are driving this.
Recent advances include:
New Q-switching Materials: Better saturable absorbers—like 2D materials (graphene, black phosphorus).
Hybrid Q-switching: Mix active and passive techniques to get the best of both.
Self-Q-switching: New ways to Q-switch without dedicated elements—especially in semiconductor lasers.
Integration with Other Tech: Mix Q-switching with fiber tech, microchip lasers, and semiconductors to make smaller, more efficient systems.
As tech gets better, new uses are popping up in:
Additive Manufacturing: Precise control of how material is deposited and modified.
Quantum Tech: Making non-classical light states (for quantum computing) and quantum sensing.
Terahertz Generation: Using Q-switched lasers to convert frequencies to terahertz (useful for imaging and communication).
Advanced Medicine: More targeted, less invasive surgeries and treatments.
Q-switching is a foundational laser technique. It lets you make high-energy, nanosecond pulses with peak power way higher than continuous lasers. Being able to change a laser cavity’s Q factor (with active devices or passive absorbers) makes Q-switching versatile. It’s still finding new uses.
Q-switched lasers are indispensable in industrial material processing, medicine, research, defense—you name it. High peak power, controllable pulses, and practical design—why they’re one of the most important laser technologies.
As research advances Q-switching materials, mechanisms, and integration with other tech, these lasers will get even more uses and capabilities. The basic idea—store energy, then release it fast— is simple but has a huge technological impact.
